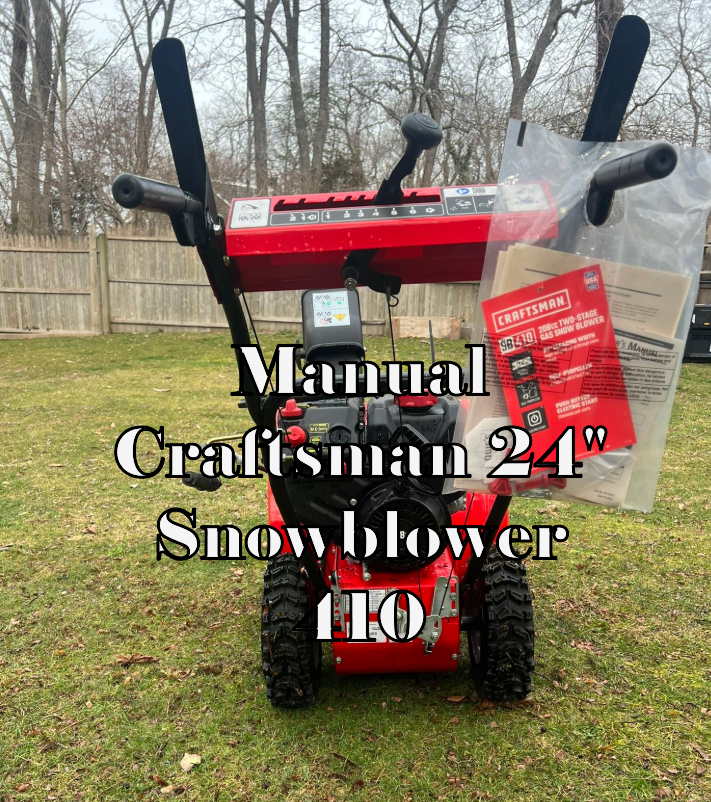

Manual Craftsman 24″ Snowblower 410 – Complete Guide, Operating Instructions & Troubleshooting
The manual Craftsman 24″ snowblower 410 is one of the most frequently searched references by owners who want quick access to startup instructions, troubleshooting steps, safety guidelines, and maintenance schedules. This article acts as a complete, easy-to-read replacement for the original manual, providing accurate information for efficient snowblower operation.
Table of Contents
About the Craftsman 24″ Snowblower 410
The Craftsman 24-inch Snowblower 410 is a two-stage snow thrower designed for medium-to-heavy snowfall. Featuring a 24″ clearing width and powerful auger-impeller system, this model is known for durability, reliable winter performance, and user-friendly controls.
Safety Instructions
- Never operate the snowblower indoors due to carbon monoxide hazards.
- Keep hands and feet away from moving parts and chute openings.
- Shut down the engine and remove the ignition key before maintenance.
- Wear winter boots with non-slip soles.
- Remove stones, ice chunks, and debris from your clearing path.
Understanding the Controls
- Drive Lever: Engages traction for forward or reverse movement.
- Auger Lever: Activates the auger and impeller.
- Chute Crank: Rotates the chute left or right.
- Chute Pitch Control: Adjusts snow throwing distance and height.
- Speed Selector: 6 forward and 2 reverse speeds.
- Electric Start: Eases cold-weather starts.
Maintenance Schedule
- Before each use: Check engine oil, tire pressure, shear pins, and remove debris.
- Every 25 hours: Change engine oil, inspect belts.
- Each season: Replace spark plug, clean carburetor, inspect friction disc and scraper bar.
Troubleshooting Guide
Snowblower Won’t Start
- Check gasoline quality and replace if stale.
- Set choke to FULL for cold starts.
- Clean or replace spark plug.
- Ensure fuel valve is ON.
Auger Not Turning
- Inspect and replace broken shear pins.
- Check auger belt for wear or slipping.
- Remove packed ice inside auger housing.
Poor Snow Throwing Distance
- Clear snow buildup in the chute.
- Use full throttle.
- Inspect auger blades for wear.
Storage Instructions
- Drain fuel or add stabilizer.
- Clean the snowblower thoroughly.
- Lubricate exposed metal parts to prevent rust.
- Store indoors in a dry environment.
How to Start and Operate the Craftsman 24″ Snowblower 410
How to Start and Operate the Craftsman 24" Snowblower 410
Follow this step-by-step method to properly start and run your Craftsman 24" Snowblower 410, based on the original manual instructions.
- Fresh unleaded gasoline
- Engine oil at correct level
- Ignition key
- Electric start button or recoil rope
- Winter gloves
-
Prepare the snowblower
Move the unit outside and ensure chute and auger housing are unobstructed.
-
Turn fuel valve ON
Open the fuel valve to allow gasoline flow to the carburetor.
-
Set choke to FULL
Use FULL choke during cold starts for easier ignition.
-
Set throttle to FAST
Move the throttle lever to FAST or RABBIT icon.
-
Insert the ignition key
The snowblower will not start unless the key is inserted fully.
-
Start the engine
Press the electric starter button or pull the recoil handle.
-
Move choke to RUN
Once the engine stabilizes, gradually set the choke to RUN.
-
Engage auger and drive
Select speed and squeeze levers to engage movement and snow clearing.
-
Clear snow in overlapping passes
Use overlapping rows for best efficiency. Use lower gears for heavy snow.
-
Shut down safely
Release levers, let engine idle 30 seconds, shut throttle, close fuel valve, remove key.
Frequently Asked Questions
You can find the manual on Craftsman Support, Sears PartsDirect, or verified manual libraries. Use the model number plate to download the correct version.
Common causes include stale fuel, dirty spark plug, closed fuel valve, or improper choke settings.
Turn fuel valve ON, set choke to FULL, insert ignition key, set throttle to FAST, then press electric start or pull recoil.
Check for broken shear pins, worn auger belt, or ice packed in the auger housing.
The oil should be changed every 25 hours of use or once per season.
Use full throttle, avoid slushy snow, and apply non-stick chute spray before operation.
Drain fuel, clean the machine, lubricate metal parts, and store in a dry location.
Craftsman 24″ Snowblower 410 – Product Specifications
| Feature | Details |
|---|---|
| Model Number | 410 Series (24-inch) |
| Engine Type | 4-cycle OHV Snow Series |
| Clearing Width | 24 inches |
| Intake Height | 21 inches |
| Stage Type | Two-stage |
| Start System | Electric start + recoil |
| Speeds | 6 forward, 2 reverse |
| Tire Size | 15″ X-Trac |
| Fuel Capacity | 2.3 quarts |
| Chute Control | Crank rotation + manual pitch |
| Ideal Use | Medium to heavy snowfall |
Need More Craftsman Snowblower Help?
Explore our maintenance guides, troubleshooting steps, and parts replacement tutorials to keep your Craftsman 24" Snowblower 410 performing like new.
Safety Reminder: Always shut off the engine, remove the ignition key, and wait for moving parts to stop before performing any maintenance.
